    1m Double Scissor Lift Tables 4 Ton Hydraulic Large Platform 2.5mx0.85m

    Ask Lasest Price
    Brand Name : JS
    Model Number : HD4000
    Certification : CE,SGS
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 sets per month
    • Product Details
    • Company Profile

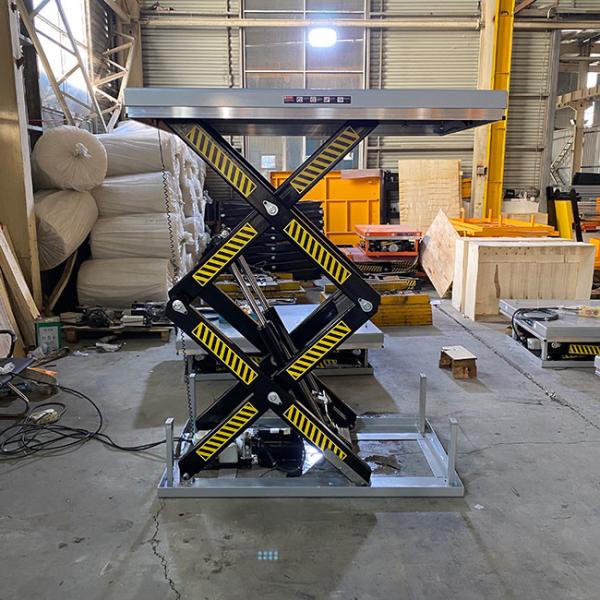

    1m Double Scissor Lift Tables 4 Ton Hydraulic Large Platform 2.5mx0.85m

    Electric Rated Max Height 1m Lifting Capacity 4ton Hydraulic Large Platform 2.5m*0.85m Double Scissor Lift Tables​


    Fixed Heavy Duty Double Scissor Lift Tables


    The Double scissor lift table provides excellent vertical lift range, using Electric hydraulic pistion to raise the platform to heights between 305mm and 2050mm. The operator simply increase the working height of the table, thereby raising the double scissor lift. Capable of handling loads up to 4000kg, the scissor lift tables is easy to use and easy to move - ideal for use in engineering, storage and manufacturing environments.


    JIASHENG offer all kinds of high lift and scissor lifts. The array can be provided in various sized according to the individual needs of customers. In addition, the series also has a solid structure and precision machined mobile components.


    Model
    Unit
    HD1000
    HD2000
    HD4000
    Rated Lifting Capacity
    Kg
    1000
    2000
    4000
    Platform Size
    mm
    1300x820
    1300x850
    1700x1200
    Base Size
    mm
    1240x640
    1220x785
    1600x900
    Min/Max Height
    mm
    305/1780
    360/1780
    400/2050
    Elevating Time
    s
    35-45
    35-45
    55-65
    Power Parameters
    380V/50Hz
    380V/50Hz
    380V/50Hz
    N.W.
    Kg
    210
    295
    520

    Electric Double Scissor Lift Table

    Double Scissor Lift Tables with double pistion and Standard thickness steel make this Vertical lifting in powerful condition.

    1m Double Scissor Lift Tables 4 Ton Hydraulic Large Platform 2.5mx0.85m
    Powerful by Electric
    3-phase support powerful in watt. Ideal technical design supply support lifting with Double scissor.
    1m Double Scissor Lift Tables 4 Ton Hydraulic Large Platform 2.5mx0.85m
    Standard thickness steel with Perfect Heavy-duty torsional steel frame
    heavy duty cylinder; Heavy Steel Legs
    Double Scissor Lift Tables with double pistion and Standard thickness steel make thi Vertical lifting in powerful condition.Electric hydraulic pistion to raise the platform to heights between 305mm and 2050mm.
    1m Double Scissor Lift Tables 4 Ton Hydraulic Large Platform 2.5mx0.85m
    Assemble and workshop
    1m Double Scissor Lift Tables 4 Ton Hydraulic Large Platform 2.5mx0.85m
    1m Double Scissor Lift Tables 4 Ton Hydraulic Large Platform 2.5mx0.85m

    Scan the QR code to contact us for quick reply for the Single scissor lift tables

    1m Double Scissor Lift Tables 4 Ton Hydraulic Large Platform 2.5mx0.85m
